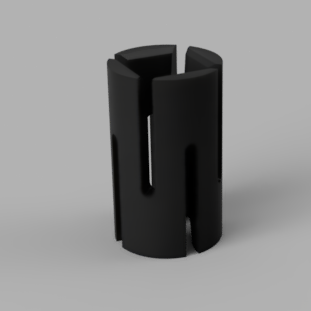

50ml Falcon Holder
A research platform needed a solution to securely hold 50ml Falcon tubes at a 15-degree angle. I designed a modular Falcon Holder that provides stability and easy access, allowing for standalone use or connection with multiple units. This innovative design enhances laboratory organization and efficiency, effectively meeting the client’s specific requirements.

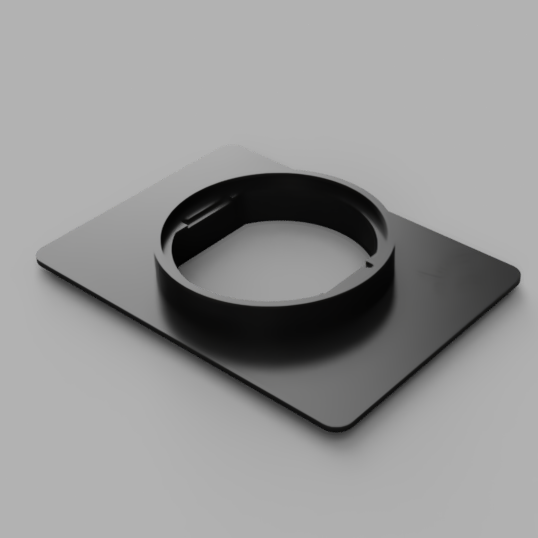

Microscope Stage Adapter
A microscope had been modified to image higher setups, making normal imaging of samples in petri dishes or microscopy slides impossible. There was a need for a stable solution to raise the samples into the focus point of the objectives. I provided a custom adapter that attaches to the stage, ensuring reliable elevation and secure positioning of the samples for effective imaging.

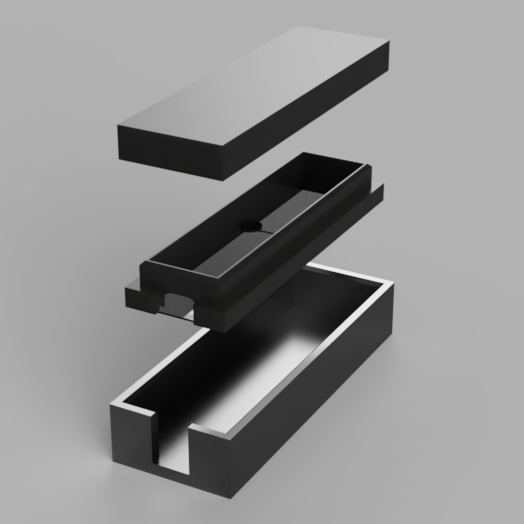

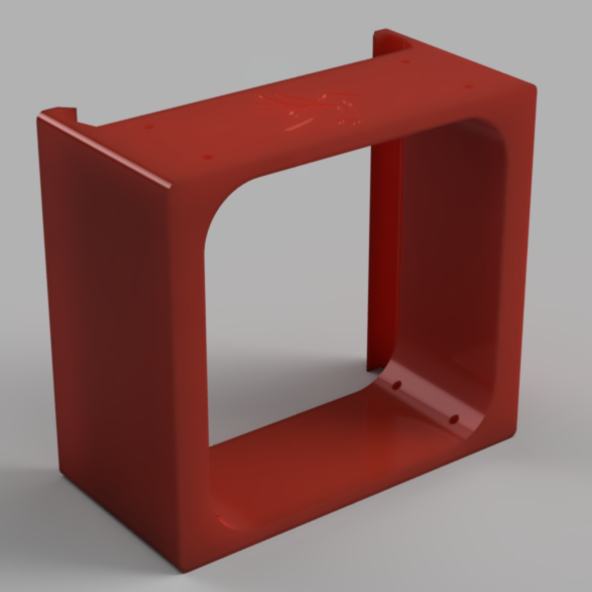

Imaging Chamber for Confocal Microscope
A researcher approached me with the idea of creating an imaging chamber for a confocal microscope that would enable her to grow large seedlings in soil and in the dark. Drawing inspiration from commercially available solutions, I adapted the design to fit her exact needs, providing a custom solution that created a controlled environment for optimal growth and imaging of the seedlings.

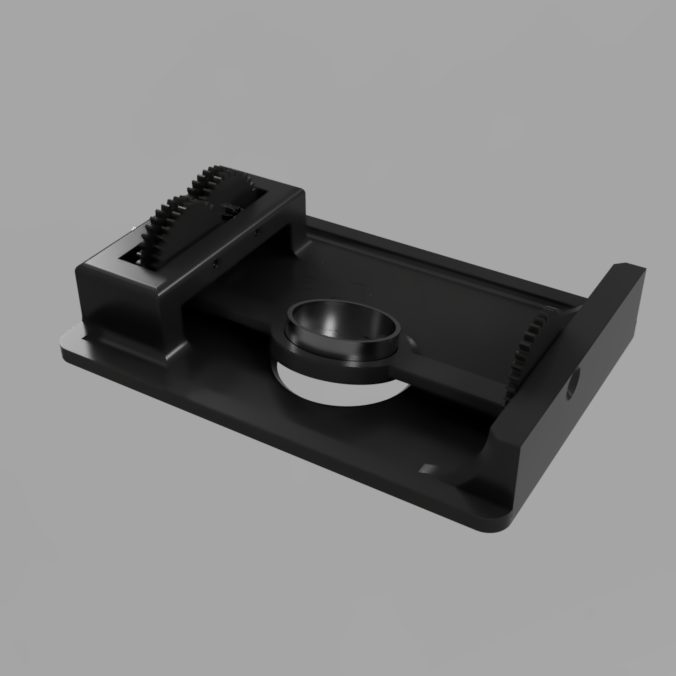

Tilting Stage for Confocal Microscope
A researcher came to me with a problem: the samples he was observing under a confocal microscope were not always perfectly in plan, which significantly increased experimental time due to the need for more z-scans and loss of part of the sample imaging. I designed a tilting stage that allows for micro-adjustments through the manual rotation of gears, providing a stable and precise solution to enhance imaging efficiency.

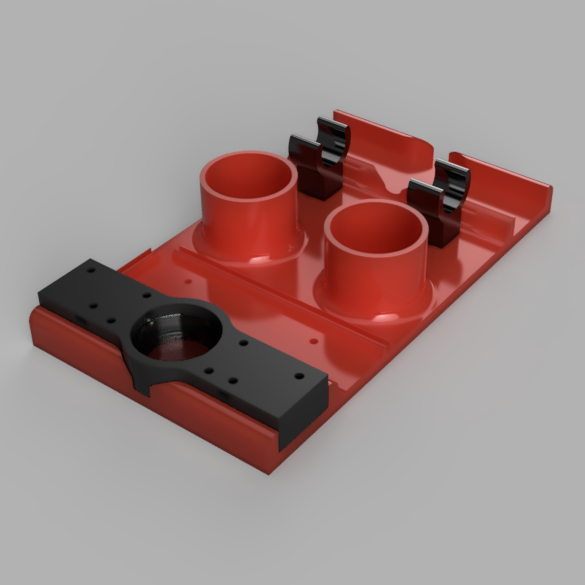

Microfluidics Setup Holder
A researcher working with microfluidics under a microscope faced challenges due to the movement of the tubing and difficulties in tubing management. Additionally, transporting her equipment from the bench to the microscope was cumbersome. I created a convenient setup holder that securely holds all the necessary tools for her experiments and includes a clamping mechanism to stabilize the tubing in place, preventing any disruptions caused by movement. This solution enhances her workflow and improves the reliability of her experiments.

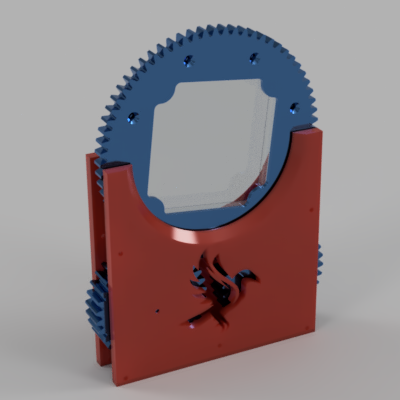

Cell Concentration Measurement Device
A researcher was interested in a setup published in a paper that would enable him to measure cell concentration in his suspension easily and non-disruptively. Utilizing the information provided in the publication, I built and adapted the device to accommodate different sizes of cell suspensions, significantly saving him time and enhancing the efficiency of his experiments.

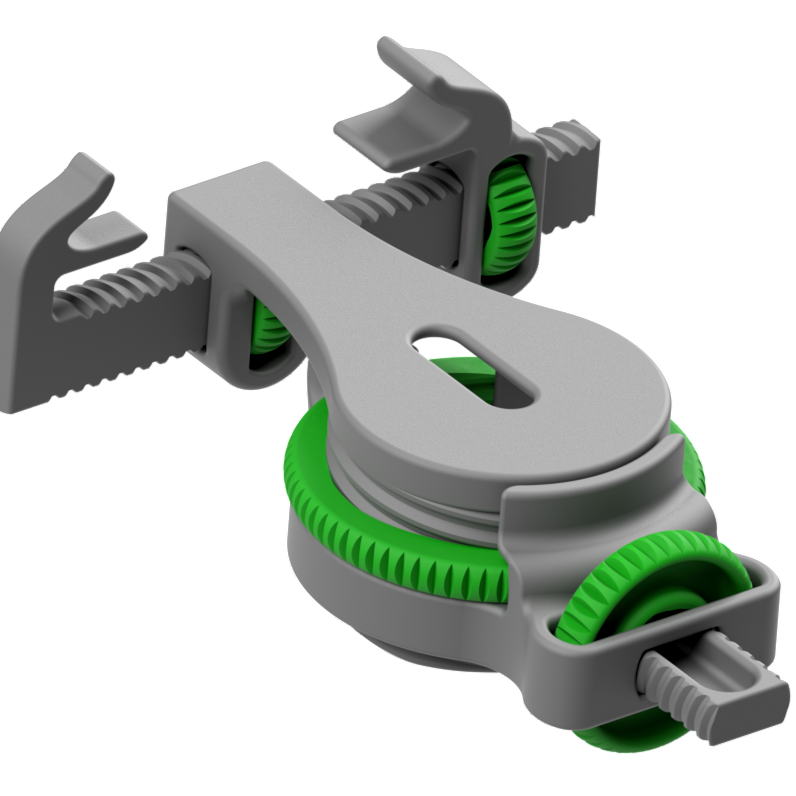

Teacher’s equipment
A teacher approached me with two needs: the 3D printing of a smartphone microscope adapter based on an existing model and the assembly of an open-source hand sectioning device for plant tissue, as detailed in a published paper. I successfully printed and assembled the smartphone adapter, facilitating easy integration with mobile devices for microscopy. Additionally, I printed and assembled the hand sectioning device, ensuring it was ready for use in plant tissue analysis while adhering to the open-source design principles.
